HP Multi Jet Fusion 3D Printing: Speed, Precision, and Scalable Production

As the demand for faster, more cost-effective, and scalable manufacturing solutions grows, HP Multi Jet Fusion (MJF) 3D printing has become a game-changer in additive manufacturing. MJF offers exceptional speed, mechanical strength, and fine detail, making it ideal for prototyping and full-scale production.

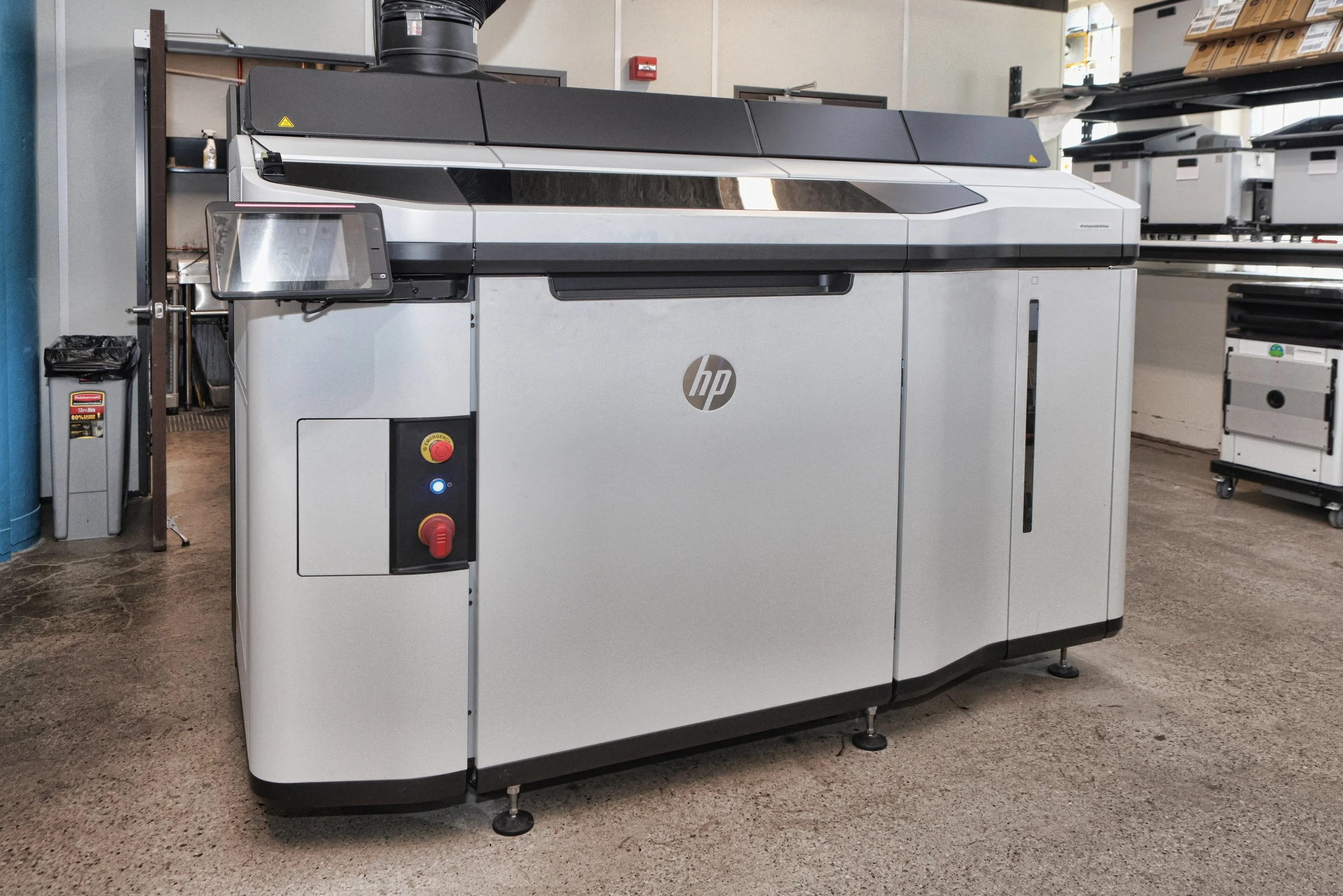

At Tronix3D, we use the HP Multi Jet Fusion 5200 to help companies streamline production, reduce lead times, and create high-performance parts with unmatched efficiency.

How HP Multi Jet Fusion Works

HP's MJF technology is different from standard powder bed fusion methods like Selective Laser Sintering (SLS). Instead of a laser sintering powder layer by layer, MJF selectively fuses polymer particles using a combination of inkjet technology and infrared heat.

Material Deposition: A thin layer of powder (such as PA 12) is evenly spread across the print bed.
Fusing & Detailing Agents: A fusing agent is applied where material should solidify, while a detailing agent enhances edge definition.
Infrared Fusion: A heat source passes over the layer, solidifying the material exactly where needed.
Layer-by-Layer Process: This is repeated until the part is fully built.
Cooling & Post-Processing: The printed part undergoes controlled cooling and post-processing, such as bead blasting or vapor smoothing.

This highly efficient process allows for faster, more accurate, and stronger part production compared to other 3D printing technologies.

Technical Capabilities of the HP 5200

The HP 5200 is a leading industrial 3D printer, offering advanced manufacturing capabilities for a variety of industries.

Build Volume: 380 x 284 x 380 mm (15 x 11.2 x 15 in)
Layer Thickness: 80 microns (0.08 mm)
Print Speed: Up to 5,058 cm³/hr (309 in³/hr)
Resolution: 1200 dpi for fine details and smooth surfaces

With these capabilities, the HP 5200 can produce complex, high-strength parts at high speeds, making it a powerful tool for manufacturing.

Key Advantages of HP MJF 3D Printing

MJF is not just about speed—it also provides superior part quality, consistency, and cost savings. Here’s how it stands out:

1. Fast, Scalable Production

Prints 10X faster than traditional FDM or SLS processes.
Ideal for low- to mid-volume production runs without expensive tooling.
Supports batch production, allowing multiple parts to be printed simultaneously.

2. High Strength & Consistency

Produces dense, isotropic parts with uniform mechanical properties.
Parts have a high strength-to-weight ratio, suitable for end-use applications.
Better layer adhesion compared to FDM, resulting in more durable parts.

3. Exceptional Detail & Surface Quality

Fine feature resolution with sharp edges and smooth surfaces.
Supports thin walls, intricate geometries, and complex internal structures.
Optional vapor smoothing and dyeing enhance aesthetics and functionality.

4. Cost-Effective & Sustainable

No need for expensive molds or tooling like traditional injection molding.
Minimal material waste with high powder reusability (~80%).
Reduces production costs by optimizing material usage.

Industries Benefiting from HP MJF Technology

HP MJF transforms production across multiple industries:

Automotive: Functional prototypes, lightweight parts, and tooling.
Medical & Healthcare: Custom prosthetics, orthotics, and medical device enclosures.
Aerospace: Strong, lightweight parts with complex geometries.
Consumer Products: Customizable products, high-detail enclosures, and wearables.
Industrial Manufacturing: Jigs, fixtures, and end-use production parts.

Why Choose Tronix3D for HP MJF Printing?

HP Multi Jet Fusion revolutionizes industrial 3D printing, offering a unique combination of speed, precision, material efficiency, and scalability. With Tronix3D’s expertise, businesses can leverage MJF technology to create high-performance prototypes and production parts at a fraction of the time and cost of traditional methods.

Interested in learning how MJF can work for your project? Contact Tronix3D today for expert guidance and custom solutions.
