High-Performance FDM

Industrial-grade thermoplastics built for extreme environments.

  • Production-Grade Polymers - PEEK, ULTEM™, and PEKK for high-heat and structural use
  • Exceptional Durability - Prints parts that rival machined plastic and light metals
  • Functional Prototypes & End-Use Parts - Trusted for aerospace, defense, and energy sectors
  • No Tooling Required - Print complex, customized parts without molds or machining
Get in touch

High-Performance Parts, Made Easy

High-Performance FDM is the go-to 3D printing process when your parts must survive extreme temperatures, chemicals, or mechanical loads. Using aerospace-grade thermoplastics like PEEK, ULTEM™, and PEKK, this method delivers functional components with excellent dimensional stability and long-term durability.

At Tronix3D, we run the Roboze ARGO 500 an industrial FDM platform that combines high heat, closed-loop precision, and advanced motion control. We print mission-critical parts for aerospace, defense, energy, and medical clients who need performance without compromise.

Whether you’re replacing machined PEEK parts or testing next-gen polymer assemblies, we make it easy to move from CAD to real-world validation fast.

How Does High-Performance FDM Work?

High-Performance FDM uses filament-based extrusion to print ultra-durable thermoplastics layer by layer. Unlike hobby-grade FDM, this industrial process operates at extreme temperatures—up to 500°C—and includes a heated chamber to ensure strength, accuracy, and dimensional stability.

At Tronix3D, our Roboze ARGO 500 system brings metal-like precision to polymer printing. Here’s how it works:

  1. Material Drying & Conditioning – Super polymers like PEEK and ULTEM™ are pre-dried in high-temp dryers to eliminate moisture

  2. Heated Chamber Printing – Parts are printed in a controlled, 180°C build chamber to reduce warping and thermal stress

  3. High-Temp Extrusion – Twin extruders push filament through nozzles at up to 500°C, enabling crystal-clear layer bonding

  4. Precision Layering – Roboze’s rack-and-pinion motion system ensures tight tolerances and smooth surfaces

  5. Post-Processing – Parts may be machined, cleaned, or heat-treated depending on the application

This makes High-Performance FDM ideal for functional prototypes, thermal housings, chemically resistant enclosures, and structural polymer parts that would be too costly or complex to machine.

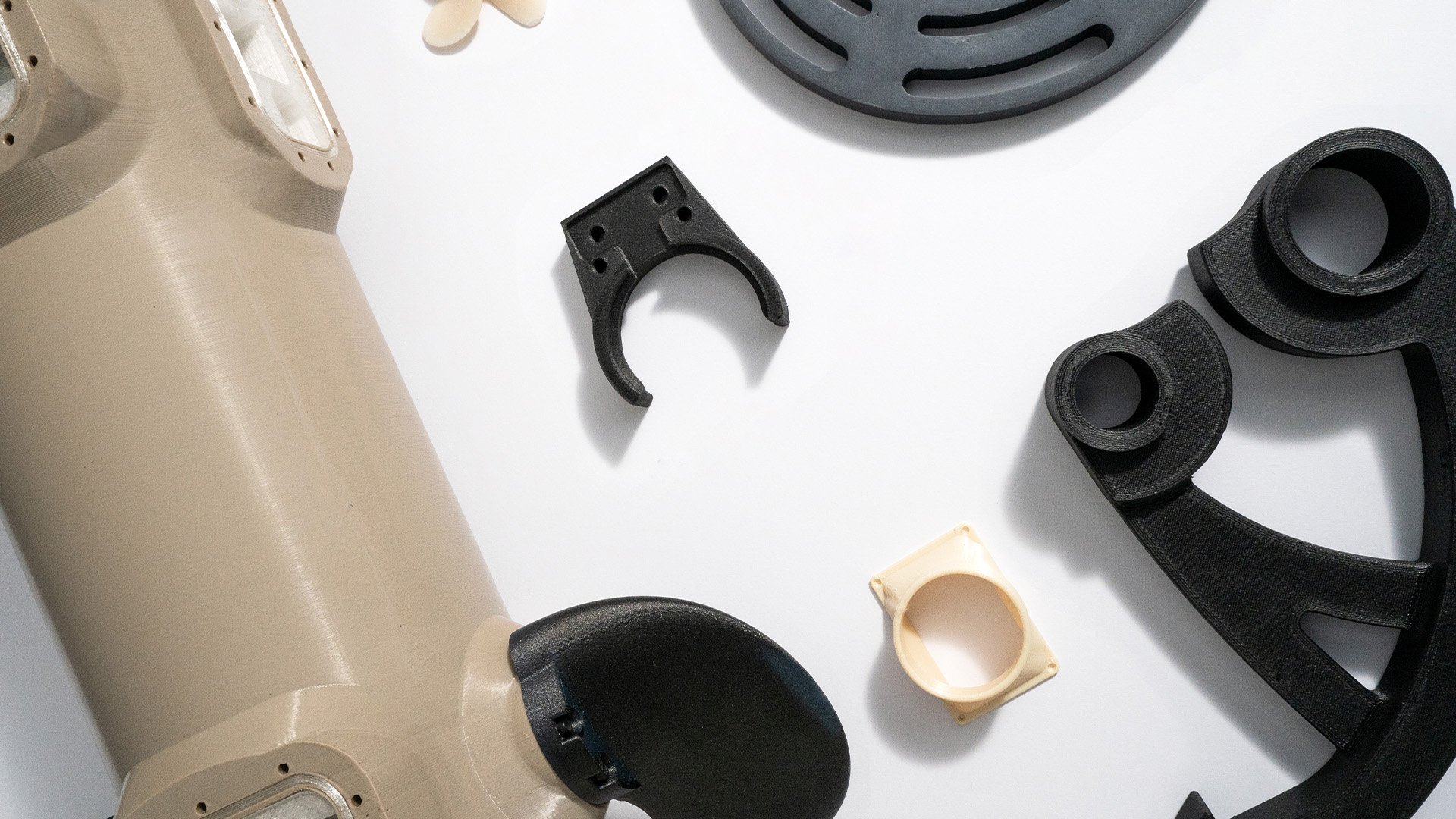

Photo Credit: Roboze

Benefits of High-Performance FDM vs. Other 3D Printing Methods

High-Performance FDM stands out for delivering aerospace-grade polymers with exceptional thermal, chemical, and mechanical performance. It fills the gap between metal printing and injection molding—without the cost or complexity of either.

Compared to Standard FDM or Desktop Printers:

  • Much Higher Print Temperatures: Up to 500°C for true engineering polymers
  • Heated Build Chamber: Reduces warping, improves Z-strength, ensures stability
  • Superior Motion Control: Roboze’s rack-and-pinion system offers micron-level precision

Compared to CNC Machining:

  • Faster Turnaround: Print complex geometries without long lead times
  • Material Savings: Extrude only what you need, instead of machining from block stock
  • Complex Internal Features: Enable lightweighting and integration not possible with subtractive methods

Why Engineers Choose High-Performance FDM

  • Industrial-grade parts with the strength, heat resistance, and chemical durability of metal
  • Ideal for aerospace, medical, energy, and defense components under extreme conditions
  • Enables functional prototyping and short-run production with zero tooling delays

Whether you’re developing aerospace brackets, sterilizable surgical housings, or rugged structural components, High-Performance FDM gives you mission-critical performance without the lead time or expense of metal machining or molding.

Materials Available for High-Performance FDM

At Tronix3D, we run advanced super-polymers through our Roboze ARGO 500 system to deliver high-strength, high-temperature parts that meet demanding aerospace and industrial standards. These materials are production-grade and application-driven.

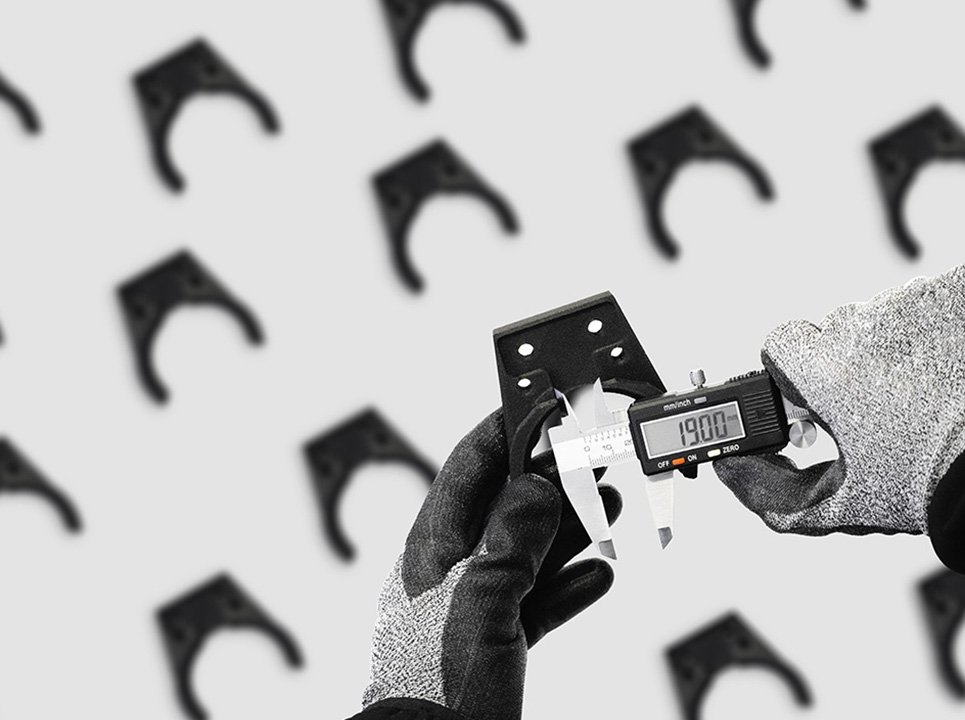

Photo Credit: Roboze

PEEK (Polyether ether ketone)

Aerospace- and medical-grade thermoplastic with excellent strength, chemical resistance, and heat tolerance (up to 260°C service temp).

Perfect for: structural brackets, shielding components, implants, and fluidic connectors.

ULTEM™ 9085 (PEI)

Flame-retardant polymer used in aerospace interiors and electrical enclosures. Certified for FST and ideal for light-weighting and compliance.

Perfect for: ducting, housings, aerospace panels, and insulation applications.

Carbon PEEK

Reinforced PEEK with carbon fiber for enhanced stiffness, thermal conductivity, and reduced weight.

Perfect for: components requiring rigidity, conductivity, and wear resistance under high loads.

Why it Matters

  • Certified Materials for Regulated Industries
  • Extreme Strength-to-Weight Ratios
  • No Compromises on Heat or Chemical Resistance
  • Accelerated Prototyping to Production

Best Applications for High-Performance FDM

High-performance FDM is trusted by engineers and manufacturing teams when failure is not an option. It’s built for mission-critical parts that must perform under high heat, stress, or regulatory scrutiny.

Top Applications Include:

  • Functional Prototypes: Validate thermal, chemical, and mechanical performance before scaling production.
  • End-Use Production Parts: Print aerospace- or medical-grade components with no tooling or machining delays.
  • Electrical & Thermal Insulators: Ideal for housings, connectors, and fixtures that need dielectric strength and heat resistance.
  • Structural Components: High-strength polymers replace metal in brackets, mounts, and frames exposed to demanding loads.
  • Part Consolidation: Replace multi-part metal assemblies with single-piece polymer structures that reduce weight, simplify builds, and speed up installation.

Whether you need one mission-ready prototype or a short run of end-use components, High-Performance FDM delivers industrial performance without the expense or lead times of traditional machining or molding.
